Pattern drawing of signboard 2 (Wiring side)
![](gif/pic6_421.gif)

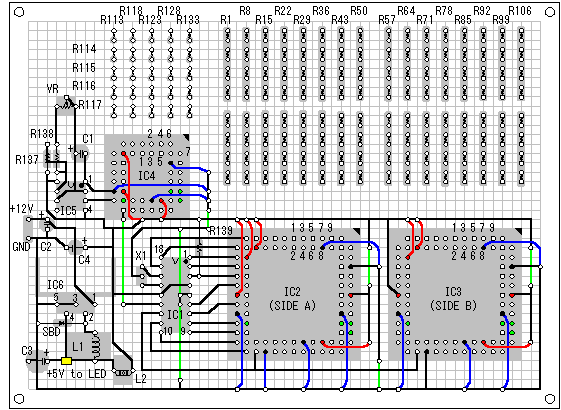

This drawing shows printed board wiring, power and grounding of the control unit.
Olive-green line shows wiring at the component side.
![](gif/pic6_422.gif)

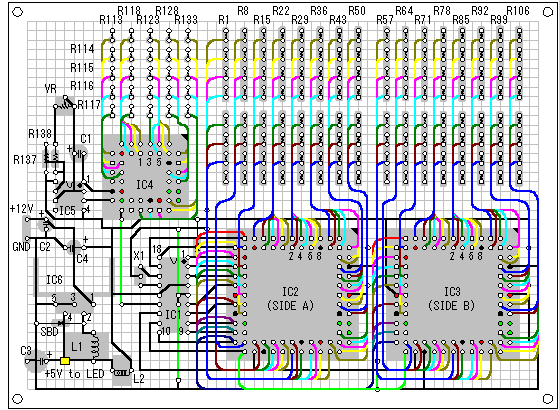

This drawing shows wiring except the power and grounding of the control unit.
![](gif/pic6_423.gif)

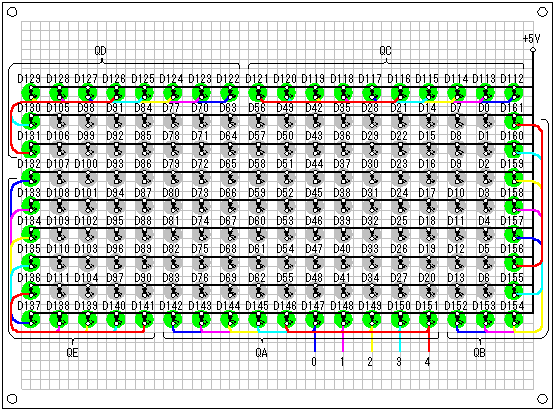

This drawing shows wiring of the LED panel.
Two LEDs are done by the multiple connection.
