Exclusive-OR Gate

The exclusive-OR gate (EOR or XOR) is a very useful two-input gate. The schematic symbol and truth table are shown in figure 7.3.

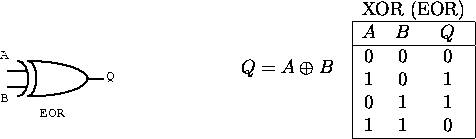

Figure 7.3:  The schematic symbol for the exclusive-OR gate (EOR or XOR) and its truth table.

From the truth table

and we can draw the mechanization directly from the truth table (figure 7.4).


Figure 7.4:  A mechanization of the exclusive-OR directly from the truth table.
